Technical Specification:

Input spec	Voltage Measurement range：                   0～200V～800V，auto switching
	Current measurement         range	Clamp transformer 5A/25A（by default）；100A/500A（optional）；400A/2000A（optional）
		Phase angle measurement range：0～359.99°
		Phase angle measurement range：45～65Hz
		Voltage channel：3 channels               （UA、UB、UC）
		Current channel: 3 channels（IA、IB、IC）
		Maximum harmonic analysis times：63
		Maximum continuous storage period at 1                 minute intervals：18 months
Accuracy	Electrical        Parameter	Voltage：±0.2%
		frequency：±0.01Hz
		current voltage：±0.5%
		phase：±0.2°
	Power quality	Fundamental voltage allowable error                          ≤0.5% F.S.
		Fundamental current allowable error: ≤1％F.S.
		Measurement error of phase differencebetween fundamental voltage and current：≤0.2°
		Harmonic voltage content rate measurement                           error：≤0.1％
		Harmonic current content rate measurement                          error：≤0.2％
		Three-phase voltage unbalance                         error：≤0.2％
		Voltage deviation error：≤0.2％
		Voltage fluctuation error：≤0.2％
Operating       Temperature	－10℃～ +40℃
Recharging Power supply	AC220V、f：45Hz～55Hz
Power Consumption	≤3VA
Battery operating time	≤10小时
Insulation	Insulation resistance of the voltage and current input terminals to the chassis≤100MΩ
	The working power input end bears the power frequency of 1.5kV (effective value) between the shell and the experiment lasts for 1 minute
Dimension	320mm×240mm×130mm
Weight	2.0kg

              Products Features:

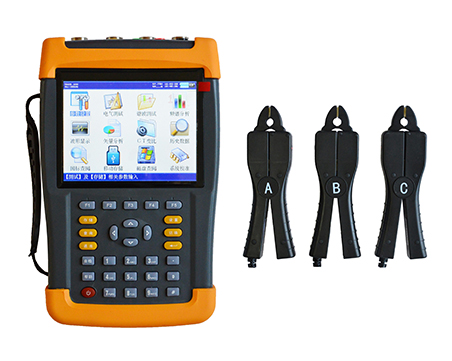

1. The power quality analyzer is a high-precision testing instrument specially used to detect power quality

    problems such as waveform distortion, harmonic content, voltage fluctuation and flicker and three-phase

    imbalance in the power grid; it also has electrical parameter testing and vector analysis Function of

2. It can accurately measure various electrical parameters such as voltage, current, active power, reactive

    power, phase angle, power factor, frequency, etc.

3. The vector diagram of the measured voltage and current can be displayed, and the user can obtain the

   correctness of the measurement equipment wiring by analyzing the vector diagram

4. The current is measured using a clamp transformer. Because the operator does not need to disconnect

    the current loop when measuring with a clamp current transformer, the measurement can be performed
         conveniently and safely. According to the user's different measuring range, you can choose
         different range of clamp meter

5. It can measure and analyze the AC power quality supplied by the public power grid to the user. Its measurement

   and analysis: frequency deviation, voltage deviation, voltage fluctuation, flicker, three-phase voltage
         allowable unbalance and grid harmonics

6. Single-phase voltage and current waveforms can be displayed and three-phase voltage and current

   waveforms can be displayed simultaneously

7. All test interfaces have screen lock function to facilitate user reading and analysis data

8. Load fluctuation monitoring: measure and analyze the fluctuations caused by various electrical equipment

    to the power quality of the public power grid under different operating conditions. Regularly record and store

   changes in power parameters such as voltage, current, active power, reactive power, apparent power,
         frequency, and phase

9. Dynamic monitoring of power equipment adjustment and operation process to help users solve problems

   arising during power equipment adjustment and commissioning

10. Ability to test and analyze the dynamic parameters of reactive power compensation and filtering devices in the

   power system and make quantitative evaluations of their functions and technical indicators

11. Different storage interval time can be set, and data can be continuously stored according to the
           set time interval

12. Built-in large-capacity data memory, which can be continuously stored for more than 18 months at a 1-minute

     interval, which can meet the needs of long-term monitoring test points

13. The power quality analyzer has a USB interface, which can easily copy the data directly to the background

    management computer

14. Cooperate with powerful data management software to upload real-time sampling data directly to the

     background management computer for more comprehensive and faster processing in the background

15. With perpetual calendar, clock function, real-time display date and time. The test data and results can be

    saved at the same time as on-site testing, and uploaded to the computer through the serial port, and the

    computerized data management can be realized through the background management software

    (optional accessory), with powerful report function

16. A large-screen imported color LCD is used as a display. The Chinese operation interface is equipped
          with a Chines  character prompt message and a multi-parameter display LCD display.
          The human-machine dialogue interface is friendly.

17. 3 minutes no operation LCD display automatically enters the power saving mode in order
           to maximize the battery working time

18. Conductive silicone buttons, good hand feel, long life, reasonable design and easy operation

19. Built-in large-capacity, high-performance lithium-ion rechargeable battery, fully charged for more than
          10 hours of continuous work

20. Small size, light weight, easy to carry, can be used for on-site measurement, and can also be used as standard

     measurement equipment in the laboratory
